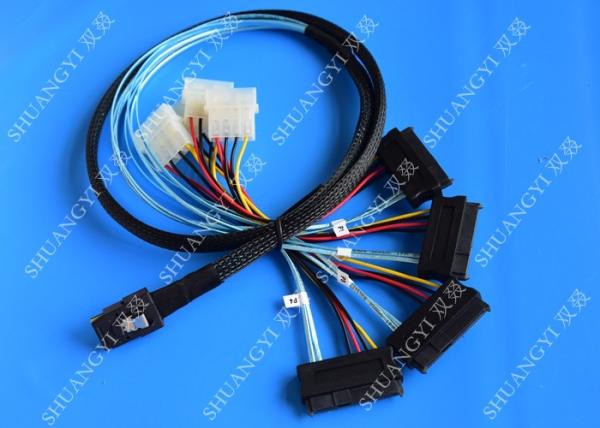

Internal Mini SAS 36-Pin SFF-8087 Male to SAS 29-Pin Female and 4-Pin Power Cable, 1m 28AWG

Detailed Product Description:

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access

Intended primarily for data storage centers the SAS interface is backwards compatible with SATA

This 1 meter long cable uses 28 AWG wires and is intended for external use

Mini SAS 36 (SFF-8087) Male Connect to the HOST/Controller, 4x SAS 29 Connect to the Target/Devices.

4x SAS 29 female with extra 4 pole power. Multiple lanes support current speeds of up to 3.0 Gbps through a single cable.

Point-to-point SCSI makes setting up SCSI easier than ever.

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access.

Cable Length 1.0M

This allows the user to mix more expensive lower-capacity SAS drives for applications that require faster data access and higher reliability with lower-cost higher-capacity SATA drives for applications with lower access speed requirements. Monoprice carries a full line of quality SAS cables with connectors for every possible application both internal and external. This 1 meter long cable uses 28 AWG wires and is intended for internal use. It has a single 36-pin SFF-8087 male Mini-SAS plug on one end and four 29-pin SFF-8482 female SAS plugs each with an attached 4-pin Molex 8981 female drive power plug on the other end. Guide to SAS Connectors Type # of Pins Environment SFF-8087 36 Internal SFF-8088 26 External SFF-8482 29 SFF-8484 32 SFF-8470 34 External (also sometimes internal)

Company Introduction：

Our company is a connector manufacturer integrating R&D, production and sales. Our main products include high-speed PCIE4.0/5.0 series SATA connectors, USB2.0, USB3.0 series, Micro-B, Micro-B waterproof series, SIM card TF card series, Type-C, Type-C waterproof series, HDMI series, wire-to-board series, SATA series, shortcut terminals, SATA wiring harness, computer peripheral cables, server internal wiring, HDMI and USB3.0, TYPE-C wiring harness, new energy vehicle charging guns, adapters and Cables and so on! Products are widely used in computers, communications, automobiles, medical and electrical equipment.

We have our own independent production plant and independent laboratory; the factory covers an area of 25,000 square meters, the production workshop area is 40,000 square meters, and we have more than 800 employees. It has complete mold development and processing equipment (including Seibu wire cutting, Japanese WAIDA optical grinding, Mitsubishi spark machines, Taiwan high-speed CNC, Yuqing precision grinders, etc.); it has production equipment: 40 high-speed precision punches, 45 imported precision injection molding machines machines, 120 automatic assembly machines and self-developed connector and cable assembly machines. With the strong support of these equipment, the company's monthly production capacity can reach 2 million cables, 30 million connectors, and stamping and injection molding OEM parts processing with an output value of more than 800,000. The current main customers include Foxconn, Dell, Asus, Amphenol, Amphenol FCI, BYD, Tyco, DELL, IBM, MOLEX、LUXSHARE, MGE, Lenovo, WIESON, Chunghsin, Emdoor etc. etc.

Since its establishment, the company has taken “high starting point, high efficiency, high quality, high requirements” as its corporate purpose. All decisions are based on quality and operate in strict accordance with the IS09001 quality control system and ISO14001 environmental certification system. In line with the corporate philosophy of “customer first, honest service, and sustainable operation”, the company relies on excellent quality and strong pre-sales and after-sales services, based on a wide range of domestic and foreign markets, and has established good cooperative relationships with domestic and foreign customers. This enables the company to develop rapidly and steadily.
