    Durable and SATA Data Connector for High-Speed Data Transfer in Modern Systems

    Ask Lasest Price
    Brand Name : Shuangyi
    Model Number : SATA-C13F-A9S12A2-00LH
    Certification : ISO9001,ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Pieces Per Month
    Delivery Time : According to clients' request
    • Product Details
    • Company Profile

    Durable and SATA Data Connector for High-Speed Data Transfer in Modern Systems

    Product parameter

    Operation Temperature-20° T0 +85°
    Rated Current1.5A@40VAC
    Withstand Voltage500VAC/minute
    Salt Spray Test Timegold-plated area 48HSalt spray: tin area regardless of control
    Environmentally friendly to satisfyHF+ROHS2.0
    1.0peration Temperature:-20°T0 +85

    (Ambient temperature range:-20°TO +85°)

    2. Electrial Characteristic:

    Rated Current:1.5A@40VAC
    (Current and Voltage Specifications: 1.5A@40VAC)
    Contact resistance:30mΩ (MAX)
    Withstand Voltage: 500VAc/minute
    Insulation Resistance:1000MQ(MIN)

    3.Termminal Plating:

    Ni 50u" Min Plated over Terminal
    Au GF Plated on Contact Area
    Tin 80u"MIN Plated on Solder&Crimp Area
    Nickel under tin regardless of control

    4.Mechanical characteristics:

    Mating force:45N max;
    Unmatingforce:15N Min for 1~5 cycles,6~50cycles 1ON min
    Single pin retention force:0.8kgf min;

    5.Salt spray: gold-plated area 48H, tin area regardless of control

    Product description

    The SATA-C13F-A9S12A2-00LH is a high-performance, reliable, and versatile SATA cable designed to meet the demanding requirements of modern computing and data storage systems. This premium cable features a unique combination of advanced specifications and robust construction, making it the perfect solution for connecting SATA devices to your system with ease and confidence.

    Key Features:

    • SATA III Compatibility: Compliant with the latest SATA 6Gb/s (600MB/s) specification, the SATA-C13F-A9S12A2-00LH ensures maximum data transfer speeds for seamless performance in high-end applications.
    • Locking Connector Design: Equipped with a secure locking mechanism, the cable's connectors provide a firm and stable connection to your SATA devices, minimizing the risk of accidental disconnections or signal loss.
    • Durable Construction: Crafted from high-quality materials, including shielded wires and corrosion-resistant contacts, the SATA-C13F-A9S12A2-00LH is built to withstand the rigors of daily use and ensure long-lasting performance.
    • Flexible Cable: The cable's flexible design allows for easy routing and installation in tight spaces, ensuring a clean and organized setup within your system.
    • Universal Compatibility: Compatible with a wide range of SATA devices, including hard drives, solid-state drives (SSDs), and optical drives, the SATA-C13F-A9S12A2-00LH is an essential accessory for any modern computing or data storage setup.

    Applications:

    • Ideal for use in servers, workstations, and desktop computers requiring high-speed data transfer.
    • Perfect for connecting SATA devices to motherboards, RAID controllers, and other SATA-enabled devices.
    • Suitable for use in a variety of data storage solutions, including NAS (Network Attached Storage) systems and external hard drive enclosures.

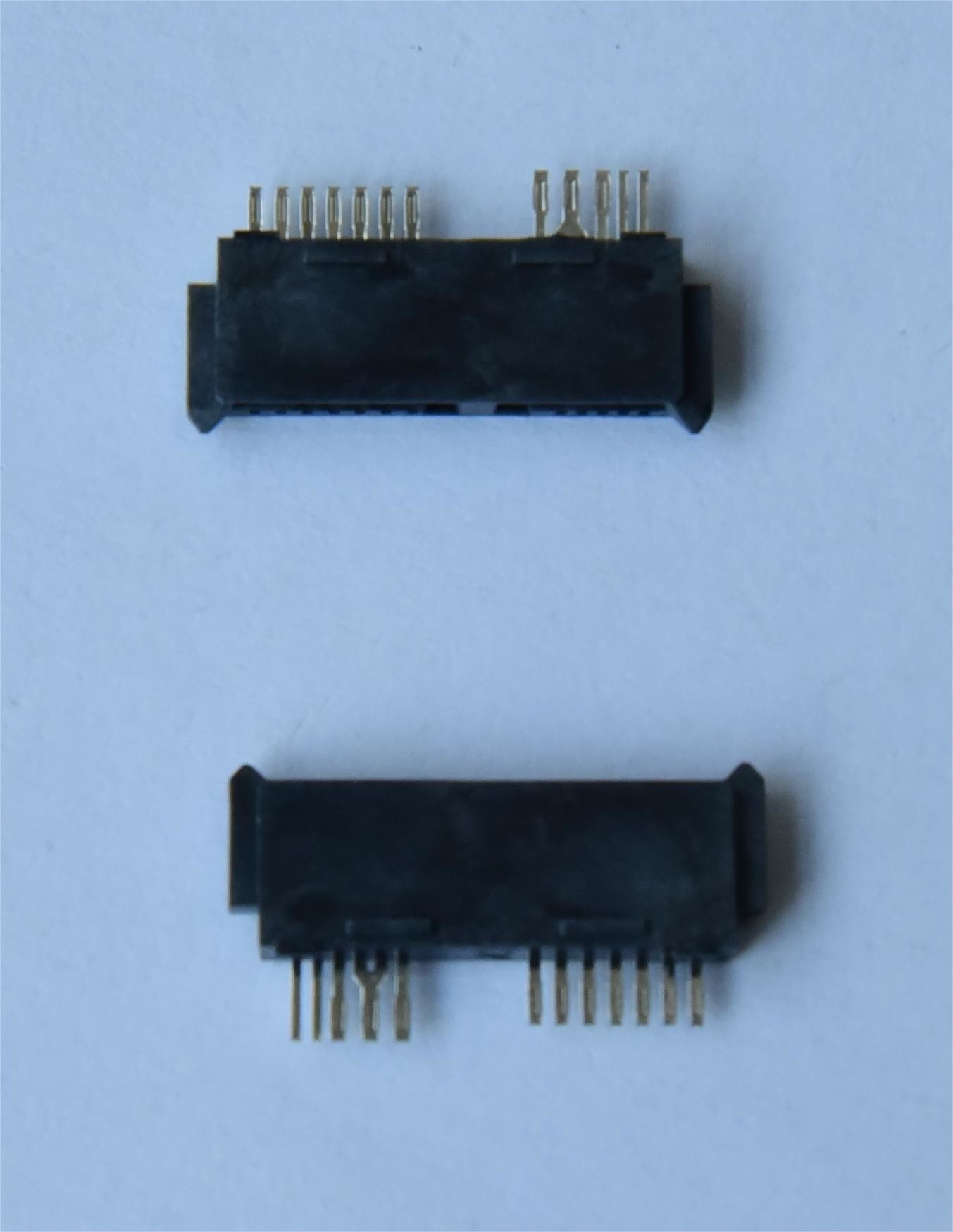

    detailed photos

    Durable and SATA Data Connector for High-Speed Data Transfer in Modern SystemsDurable and SATA Data Connector for High-Speed Data Transfer in Modern SystemsDurable and SATA Data Connector for High-Speed Data Transfer in Modern SystemsDurable and SATA Data Connector for High-Speed Data Transfer in Modern SystemsDurable and SATA Data Connector for High-Speed Data Transfer in Modern SystemsDurable and SATA Data Connector for High-Speed Data Transfer in Modern Systems
