    High-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal Transmission

    Ask Lasest Price
    Brand Name : Shuangyi
    Model Number : PZQM-B04B06-D19T3-01LR
    Certification : ISO9001,ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Pieces Per Month
    Delivery Time : According to clients' request
    • Product Details
    • Company Profile

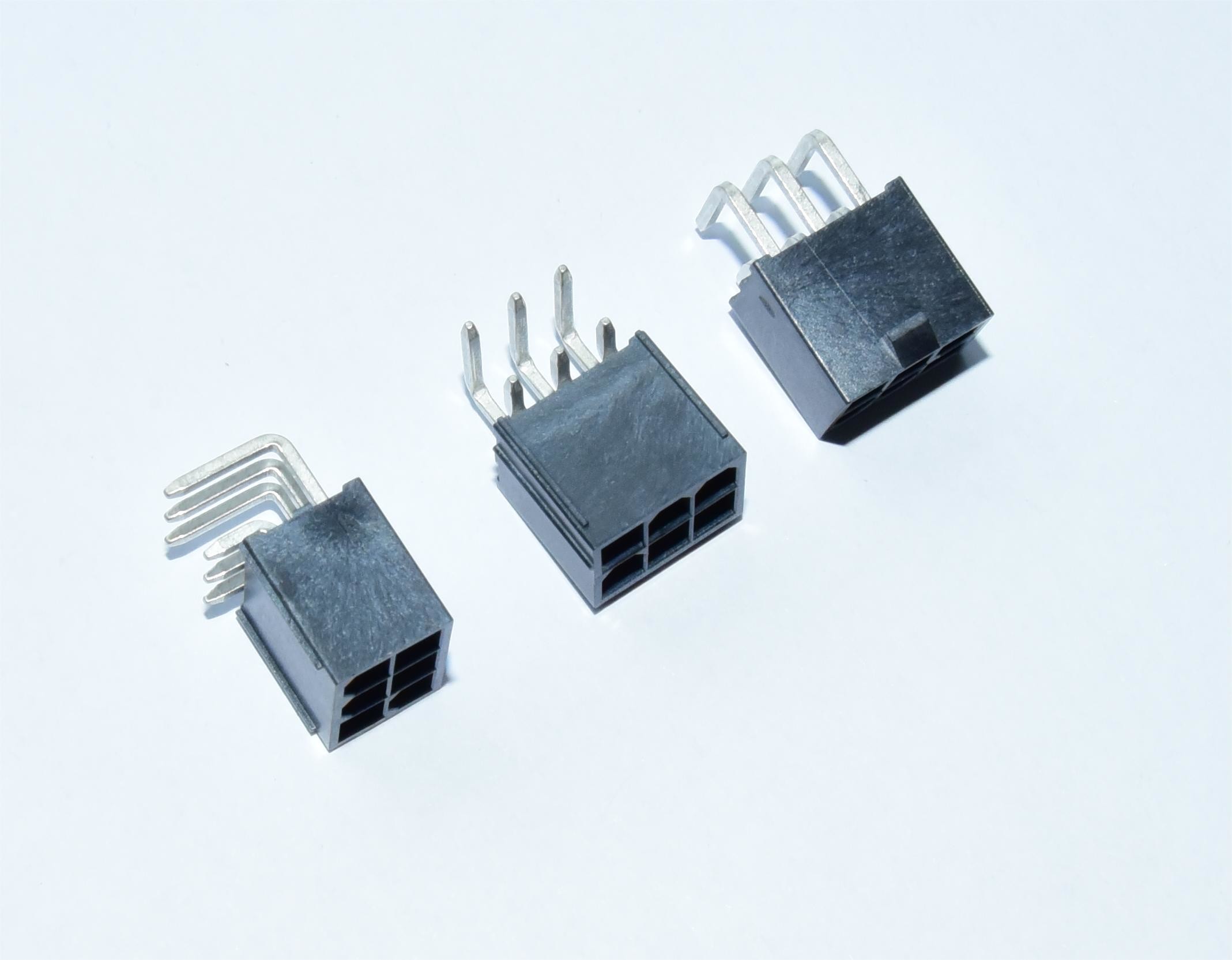

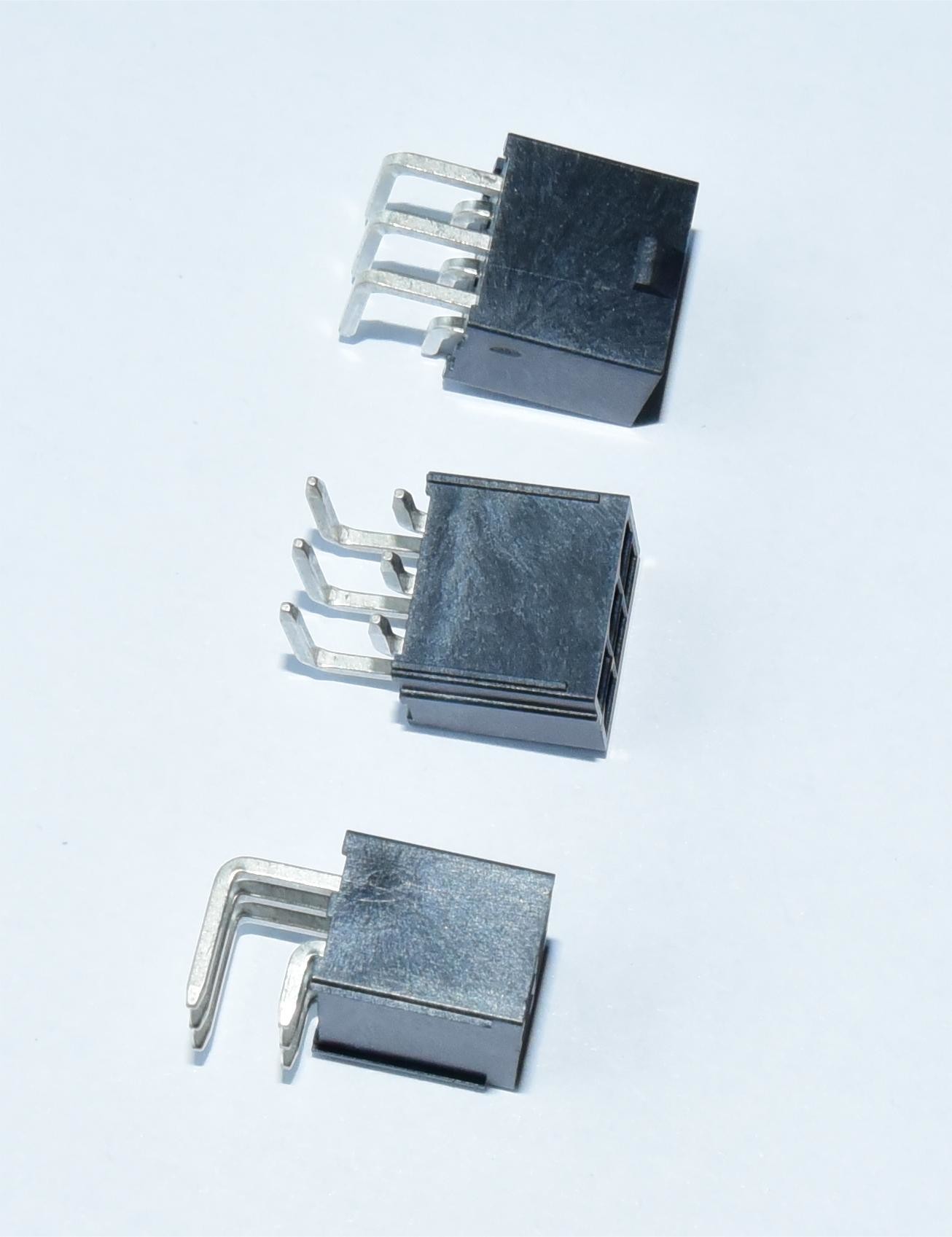

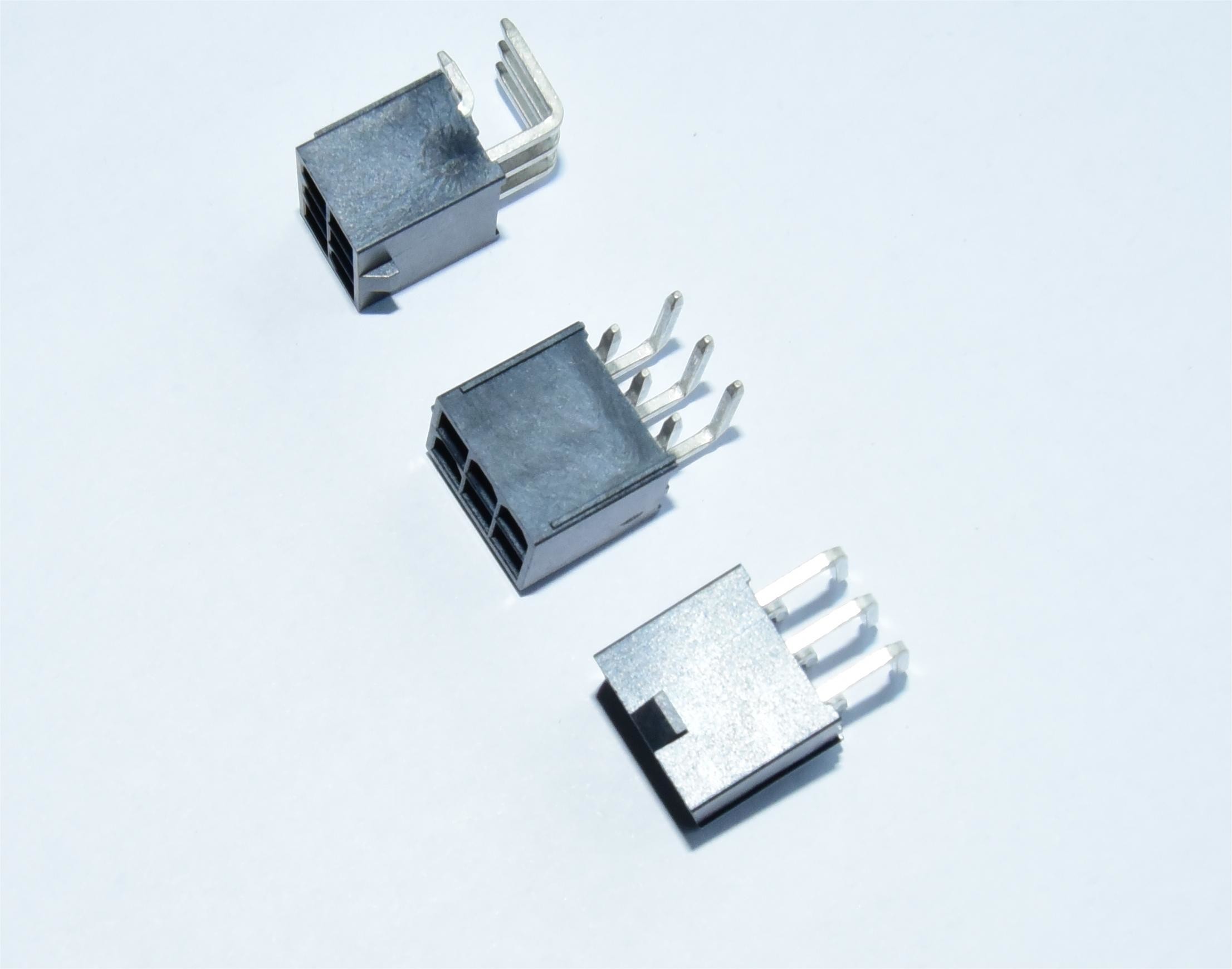

    High-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal Transmission

    Product Description

    Product nameDouble row 2*3p black elbow header
    Pin Count2*3p
    Platingtin

    1. Basics

    • Type: Double row pin header with 2 rows of 3 pins each, totaling 6 pins.
    • Color: Black, providing a sleek and professional aesthetic.
    • Design: Features an elbow (or right-angle) design, allowing for flexible connections in space-constrained environments or where a specific angle is required.

    2. Technical Specifications

    • Pin Pitch: Typically 2.54mm, the standard pitch for many electronic connectors, but specific values may vary by product.
    • Pin Count: 3 pins per row, totaling 6 pins (2x3p).
    • Materials:
      • Contact Material: Likely copper alloy for excellent conductivity and processability.
      • Insulator Material: High-temperature plastic such as nylon 6T, with UL94V-0 flammability rating, ensuring durability and resistance to heat.
    • Electrical Performance:
      • Current Rating: May reach up to 3.0A or higher, depending on the product design.
      • Voltage Rating: May be 250V AC/DC or higher, also subject to specific product specifications.
      • Contact Resistance: Low contact resistance ensures accurate and stable signal transmission.

    3. Applications

    • Widely used on PCBs (Printed Circuit Boards), particularly in applications requiring high-density connections and space savings.
    • Found in various electronic devices such as computers, communication equipment, and industrial control systems.

    4. Additional Features

    • Plating: Pins may be plated with gold or tin-nickel alloy for enhanced corrosion resistance and conductivity.
    • Packaging: Typically packaged in trays or cardboard boxes for convenient transportation and storage.
    • Customization: Some suppliers may offer customization options, including color, size, and pin count adjustments.

    High-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal TransmissionHigh-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal TransmissionHigh-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal TransmissionHigh-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal TransmissionHigh-Performance Double Row 2x3p Black Elbow Pin Header for Stable Signal Transmission
