Double Row 2*2p Inline Header Electronic Devices terminal pin header

    Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers

    Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers
    • Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers
    • Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers
    • Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers
    • Buy cheap Double Row 2*2p Inline Header Electronic Devices terminal pin header from wholesalers

    Double Row 2*2p Inline Header Electronic Devices terminal pin header

    Ask Lasest Price
    Brand Name : Shuangyi
    Model Number : PZQM-B04B04-P35T3-00WH
    Certification : ISO9001,ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Pieces Per Month
    Delivery Time : According to clients' request
    • Product Details
    • Company Profile

    Double Row 2*2p Inline Header Electronic Devices terminal pin header

    Product Description

    Product nameDouble row 2*2p inline header
    Pin Countrow 2*2p
    Platingtin

    1. Basics

    • Type: Double row inline header pin header with 2 rows of 2 pins each, totaling 4 pins.
    • Application: Widely used in electronic devices as an electrical connection interface between circuit boards and other components.

    2. Structural Features

    • Double Row Design: Offers twice the pin count of a single-row connector, suitable for applications requiring more connection points.
    • Inline Configuration: Enables direct insertion into holes on circuit boards for simple installation.
    • Compact Structure: With two rows and a moderate pin count per row, the overall structure is compact, saving space.

    3. Technical Specifications

    • Pin Pitch: Common pin pitches include 1.27mm, 2.0mm, 2.54mm, etc., depending on the product model and specifications. The pin pitch affects connector density and installation accuracy.
    • Materials:
      • Contact Material: Typically copper alloy or copper plated with gold, silver, or other metals for excellent conductivity and corrosion resistance.
      • Insulator Material: Made of high-temperature, flame-retardant plastic materials such as nylon (PA) or polybutylene terephthalate (PBT), ensuring connector stability and safety.
    • Electrical Performance:
      • Current Rating: May vary based on product specifications but generally meets the needs of typical electronic devices.
      • Voltage Rating: Also determined by product specifications, adhering to industry standards or customer requirements.
      • Contact Resistance: Low contact resistance ensures accurate and stable signal transmission.

    4. Application Areas

    • Widely utilized in various electronic devices, including computers, communication equipment, consumer electronics, and industrial automation systems. These connectors play a crucial role in signal transmission and power connection within these devices.

    5. Additional Features

    • Plating: Some products may have pins plated with gold, silver, or other precious metals to enhance conductivity and corrosion resistance.
    • Eco-Friendliness: Compliant with RoHS and other environmental standards, ensuring the absence of harmful substances.
    • Customization: Some suppliers offer customization services, allowing adjustments to pin count, pitch, color, and other parameters based on customer needs.

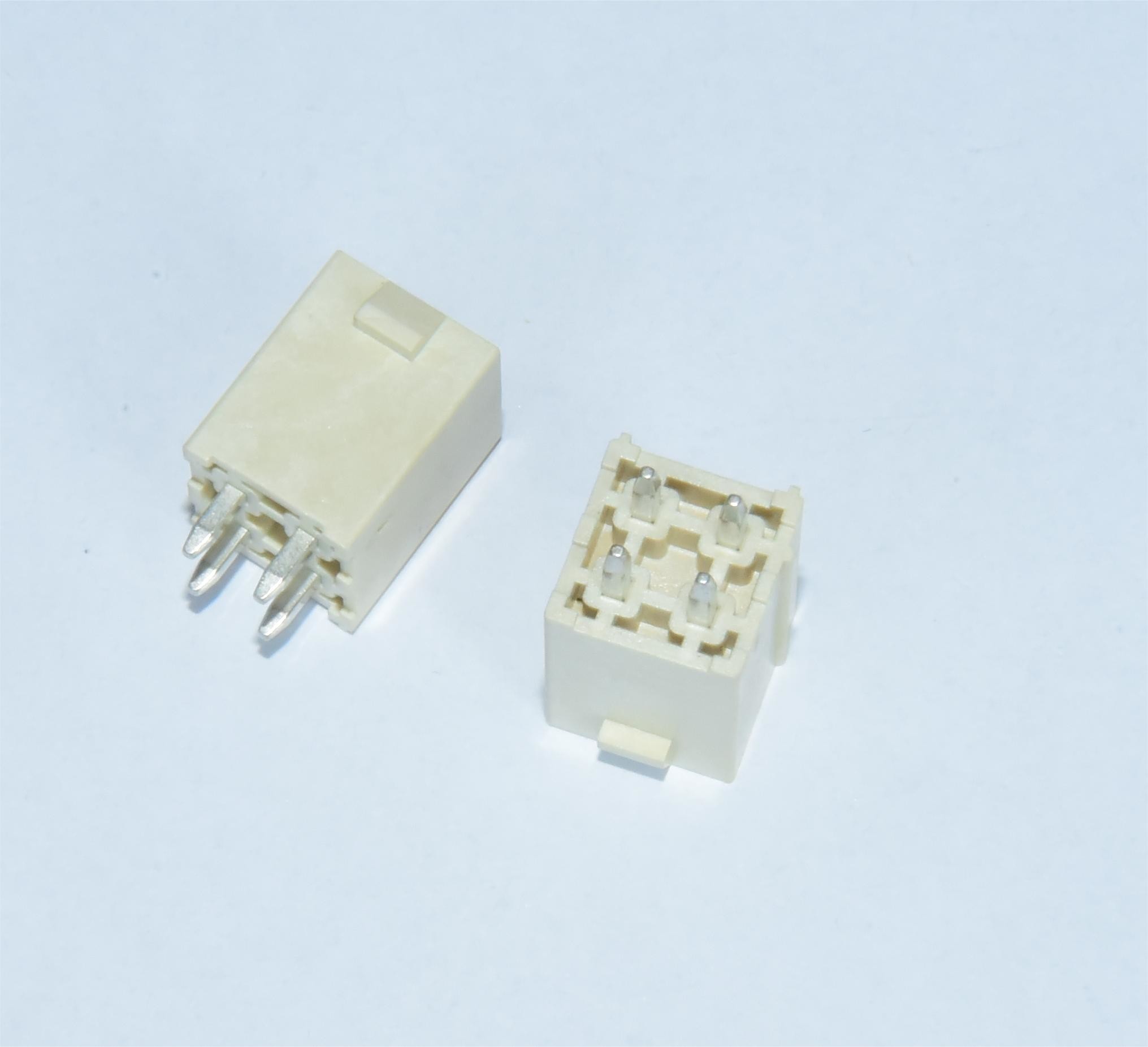

    detailed photos

    Double Row 2*2p Inline Header Electronic Devices terminal pin headerDouble Row 2*2p Inline Header Electronic Devices terminal pin headerDouble Row 2*2p Inline Header Electronic Devices terminal pin headerDouble Row 2*2p Inline Header Electronic Devices terminal pin header
