    Micro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic Devices

    Ask Lasest Price
    Brand Name : Shuangyi
    Certification : ISO9001,ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Pieces Per Month
    Delivery Time : According to clients' request
    Model Number : PZSM-B04B24P-P42T3-40LH
    • Product Details
    • Company Profile

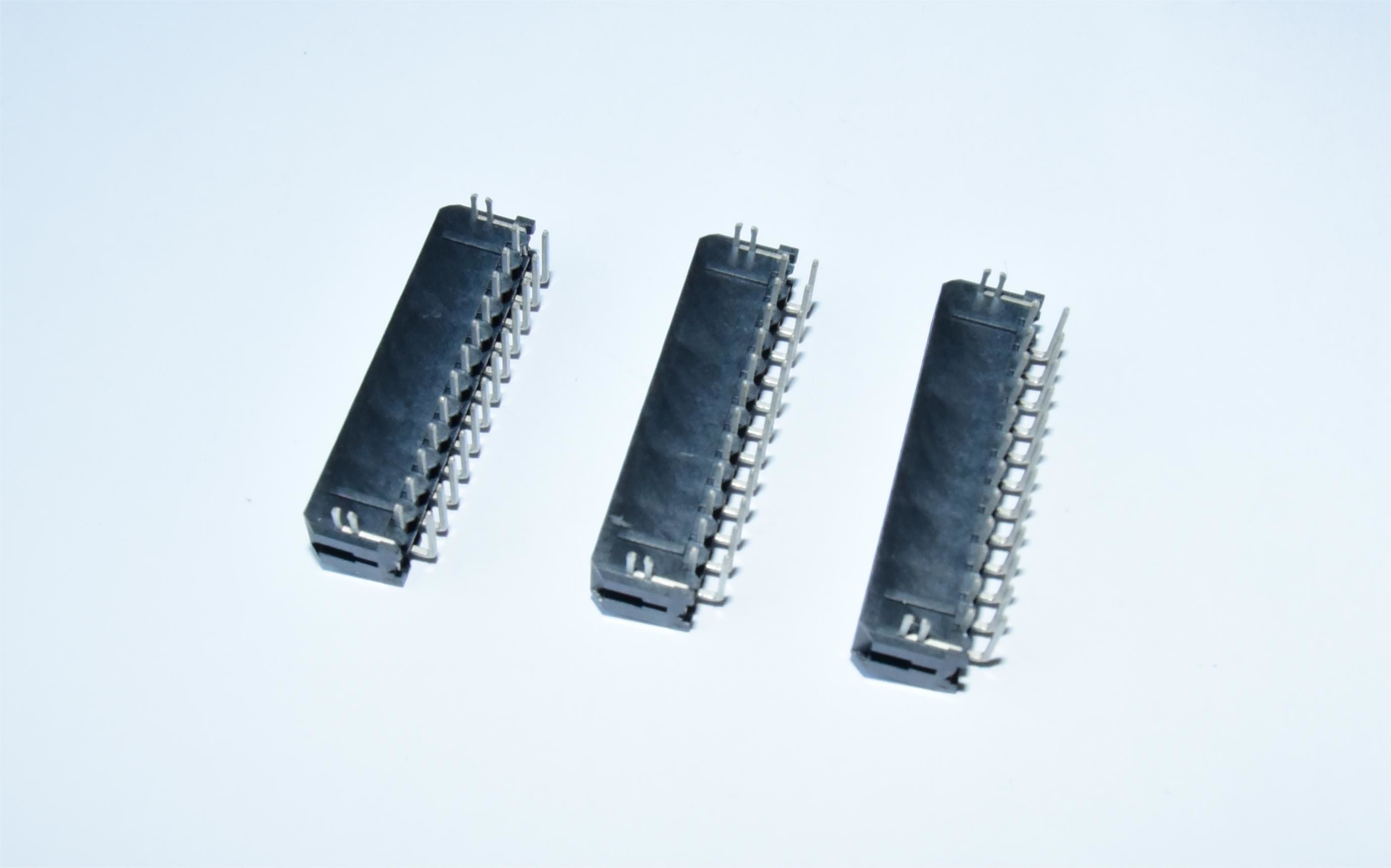

    Micro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic Devices

    Product parameter

    Product NameMicro-FIT 3.0 Side-mounted double row header tinned 100U"
    Applicationelectronic Industrial area
    Pin2*12p

    Basic Information:

    • Product Model: Micro-FIT 3.0 Side-mounted Double Row Header Tinned 100U
    • Series: Micro-FIT 3.0 Series
    • Pin Finish: Tinned
    • Mounting Type: Side-mounted
    • Number of Rows: Double

    Product description

    Core Features:

    1. High Contact Density:
      • Designed with a 3.00mm (0.118") pin pitch, the Micro-FIT 3.0 Series achieves high contact density, suitable for applications requiring tightly packed connectors.
    2. High Current Carrying Capacity:
      • Capable of carrying relatively high currents, with varying specifications ranging from 3A to 8.5A depending on sources, making it suitable for circuits requiring the transmission of substantial power.
    3. Tinned Pins:
      • The pins are plated with tin, enhancing conductivity and corrosion resistance, thereby prolonging the connector's lifespan.
    4. Fully Isolated Terminals:
      • The terminals are fully isolated, preventing potential damage during handling and mating, ensuring stable and reliable connections.
    5. Side-mounted Design:
      • The side-mounted layout conserves space on the circuit board, facilitating easier integration into compact electronic devices.
    6. Double Row Layout:
      • The double row pin configuration offers more connection points, catering to applications requiring multiple signal or power channels.

    Application Areas:

    • The Micro-FIT 3.0 Series connectors are widely used in various electronic devices, including but not limited to computers, workstations, satellite communication equipment, mobile phones, consumer electronics (such as washing machines, dryers, fridges, game consoles, printers, scanners, etc.), security systems, vending machines, white goods, medical devices, and telecommunications/networking equipment.

    Micro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic DevicesMicro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic DevicesMicro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic DevicesMicro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic DevicesMicro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic DevicesMicro-Fit 3.0 Side-Mounted Double Row Header Tinned 100u" Internal Structure of Electronic Devices
